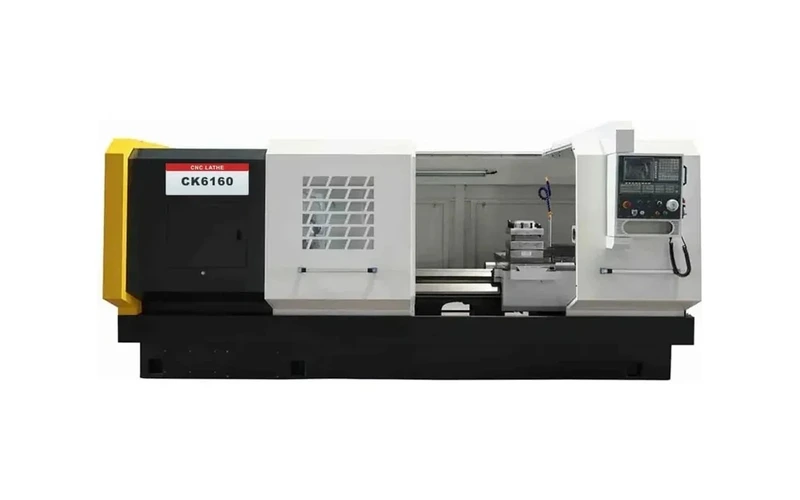

CK6160 Large-Bore Flat Bed CNC Lathe
Heavy-duty 600 mm swing flat bed CNC lathe with 82/105 mm spindle bore, 1000/1500/3000 mm center distance options, extra-wide 450 mm bedways, and 11 kW motor for heavy machinery, oilfield pipe threading, and large flange turning.
Key Engineering Features
- Large 600 mm Swing Over Bed for oversized flanges, valves, and heavy billets
- Extra-Wide 450 mm Bedway Width: Superior load-bearing capability and torsional resistance
- Large Spindle Bore Options: Φ82 mm / Φ105 mm (optional Φ130 mm for pipe turning)
- 11 / 15 kW High-Torque Spindle Motor with Heavy Gear Transmission
- Reinforced 4-Station or 6-Station Heavy Electric Tool Post
- Positioning Accuracy ±0.01 mm | Repeatability ±0.005 mm
Comprehensive Engineering Specifications
| Parameter | Specification / Value |
|---|---|
| Model | CK6160 |
| Bed Structure | Horizontal Flat Bed (Extra Wide 450 mm) |
| Max. Swing Over Bed | Φ600 mm |
| Max. Swing Over Carriage | Φ360 mm |
| Distance Between Centers | 1000 / 1500 / 2000 / 3000 mm |
| Max. Machining Length | 850 / 1350 / 1850 / 2850 mm |
| Bedway Width | 450 mm |
| Spindle Bore Diameter | Φ82 mm (optional Φ105 mm / Φ130 mm) |
| Spindle Nose Type | A2-8 / A2-11 |
| Spindle Speed Range | 16 - 1,600 RPM (3-Step Mechanical Shift) |
| Main Motor Power | 11 / 15 kW |
| X/Z Axis Travel | 320 / 1000 (1500/2000/3000) mm |
| Rapid Feed Speed (X/Z) | 6 / 8 m/min |
| Standard Tool Post | 4-Station Electric Turret (Vertical Heavy) |
| Tool Shank Size | 32 × 32 mm |
| Tailstock Sleeve Taper | MT5 |
| Positioning Accuracy | ±0.01 mm |
| Repeatability Accuracy | ±0.005 mm |
| CNC Control Options | GSK 980TDi / FANUC 0i-TF / Siemens 808D / KND |
| Overall Dimensions (L×W×H) | 3100 × 1600 × 1780 mm (for 1000 mm center) |
| Machine Net Weight | 3,600 kg |
Heavy-Duty Capacity for Large Industrial Turnings & Pipe Processing
The Qingluan CK6160 Large-Bore Flat Bed CNC Lathe is built for extreme rigidity when turning oversized workpieces. With a massive 600 mm swing capacity, extra-wide 450 mm hardened bedways, and large spindle bore options up to Φ105 / Φ130 mm, the CK6160 is the ultimate machine tool for heavy industrial equipment manufacturers, mining machinery rebuilders, energy valve producers, and oilfield pipe threading shops.
Core Technical Advantages
- Extra-Wide 450 mm Box-Way Foundation: Cast from premium alloyed gray iron with double-wall ribbing, the 450 mm guide rail span eliminates saddle tilting and provides rock-solid foundation for deep-cut facing and peeling operations on heavy steel forgings.
- Large-Through-Bore Spindle Options: Designed for oilfield API pipe threading, hydraulic cylinder rod turning, and hollow shaft machining, with front and rear dual-chuck mounting provisions.
- Robust Heavy-Duty Tool Carrier: Heavy vertical electric tool post accepts up to 32 × 32 mm solid carbide toolholders, guaranteeing zero deflection under heavy depths of cut (up to 8 mm single-pass depth in structural steel).
