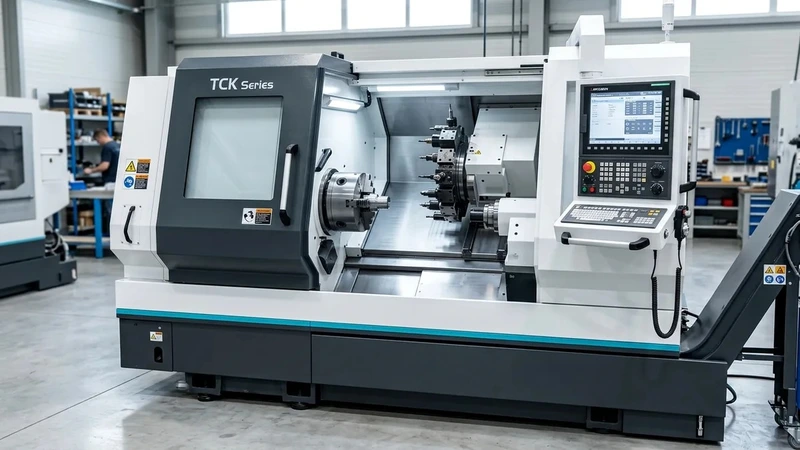

TCK50 High-Precision Slant Bed CNC Lathe
High-speed 30-degree true slant bed CNC turning center with 500 mm swing over bed, 8/12-station hydraulic servo turret, 4,000 RPM precision motorized spindle, and rapid gravity chip evacuation for automated mass turning.
Key Engineering Features
- 30° Monolithic True Slant Bed Casting for optimal cutting force distribution and effortless chip drop
- High-Speed Spindle Unit: 4,000 / 5,000 RPM with A2-6 spindle nose (7.5 / 11 kW)
- Max. Swing Over Bed: 500 mm | Max. Turning Diameter: 360 mm | Max. Turning Length: 450 mm
- 12-Station Heavy-Duty Hydraulic Servo Turret (0.2s adjacent station index time)
- Rapid Traverse: 30 / 30 m/min on X and Z axes with high-rigidity roller linear guideways
- Positioning Accuracy ±0.004 mm | Repeatability ±0.002 mm
Comprehensive Engineering Specifications
| Parameter | Specification / Value |
|---|---|
| Model | TCK50 |
| Bed Structure | 30° Integrated Monolithic Slant Bed |
| Max. Swing Over Bed | Φ500 mm |
| Max. Turning Diameter | Φ360 mm |
| Max. Turning Length | 450 mm |
| Spindle Nose Type | A2-6 |
| Chuck Size | 8-inch (200 mm) Hydraulic 3-Jaw |
| Spindle Bore Diameter | Φ66 mm |
| Max. Bar Stock Capacity | Φ52 mm |
| Spindle Speed Range | 45 - 4,000 RPM |
| Main Motor Power | 7.5 / 11 kW |
| X/Z Axis Travel | 190 / 500 mm |
| Rapid Traverse (X/Z) | 30 / 30 m/min |
| Turret Tool Capacity | 12 Stations (Hydraulic Servo) |
| Tool Shank Dimension | 25 × 25 mm / Φ32 mm |
| Tailstock Quill Taper | MT4 (Hydraulic Programmable) |
| Positioning Accuracy | ±0.004 mm |
| Repeatability Accuracy | ±0.002 mm |
| CNC Control Options | FANUC 0i-TF / Siemens 828D / SYNTEC / GSK 988T |
| Overall Dimensions (L×W×H) | 2400 × 1700 × 1750 mm |
| Machine Net Weight | 3,800 kg |
True Slant Bed Geometry for Continuous Automated Production
The Qingluan TCK50 Slant Bed CNC Lathe is engineered from the ground up for high-precision batch turning. Built upon a 30-degree integrated Meehanite cast-iron bed, the machine naturally directs cutting forces into the machine foundation while allowing hot metal chips and coolant to drop unobstructed by gravity into the high-capacity chip conveyor.
Core Technical Advantages
- High-Dynamic 12-Station Servo Turret: Hydraulic clamping with bi-directional servo positioning achieves index times of just 0.2 seconds between adjacent stations, drastically cutting non-productive tool change time during high-volume automotive shaft and bush manufacturing.
- Cartridge-Type Precision Spindle Assembly: Mounted with Japanese NSK high-precision angular contact thrust ball bearings and double-row cylindrical roller bearings, delivering thermal stability, high rotational accuracy, and exceptional radial cutting stiffness.
- Automation Ready: Fully compatible with automated short/long bar feeders, pneumatic parts catchers, workpiece unloader chutes, and robot loading automation interfaces.
Request a Technical Quotation
Send us your part drawings or machine requirements. Our application engineering team will provide detailed cycle time calculations, tooling layout recommendations, and a formal CIF/FOB quotation within 12 hours.
